Wolf Eyes Seal Pro 'Ultra'







Lumens: 1,620 lumens

Weight with battery: 445 grams

Throw: Way over 600 metres with large aspheric head – spot

(ANSI rating is over a kilometre, somewhat optimistically!)

200 metres on reflector head – spot with flood

Length: 211mm aspheric head, 171mm reflector

Beam Type: Aspheric LED Head – Spot adjustable to flood

Reflector LED Head – Spot surrounded by flood

The new 'ULTRA' versions of the Seal have arrived, we are very impressed!  Giant throw and light output.  Extremely high output LEDs have been out for a while, most manufacturers have met the challenge of managing the huge heat output of these LEDs by running for a couple of minutes, doing limited damage and wear, then dropping down in output. As most of our users are professionals or frequent users, this limited damage would have eventually added up. We now have an LED we can safely run at full output for the full rated time. No dropping down a level just when you need bright light!

The new 'Ultra' are seriously bright, we noticed a third increse in the reflector output and similar in the large aspheric head, it just became harder to rate a usable distance over 600 metres

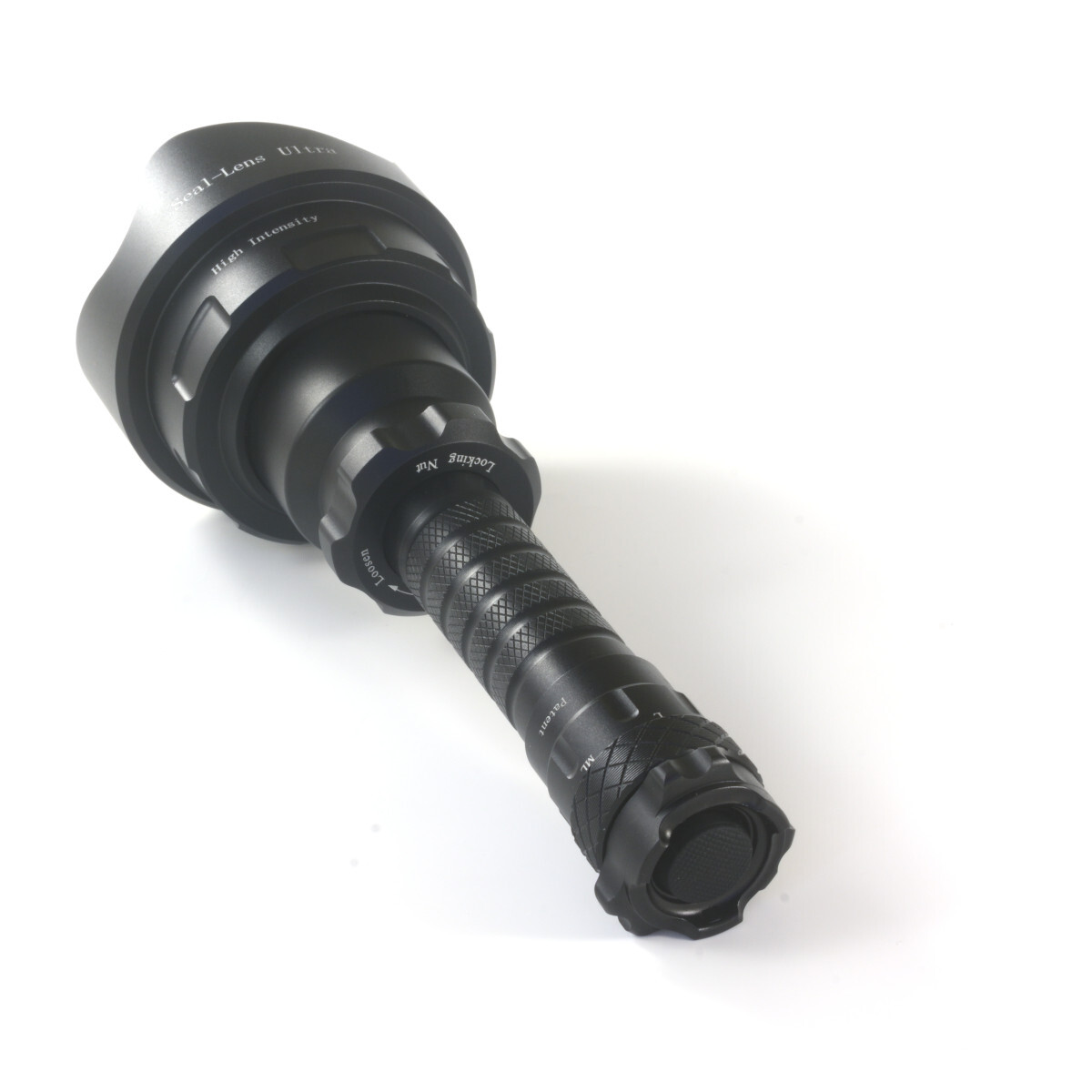

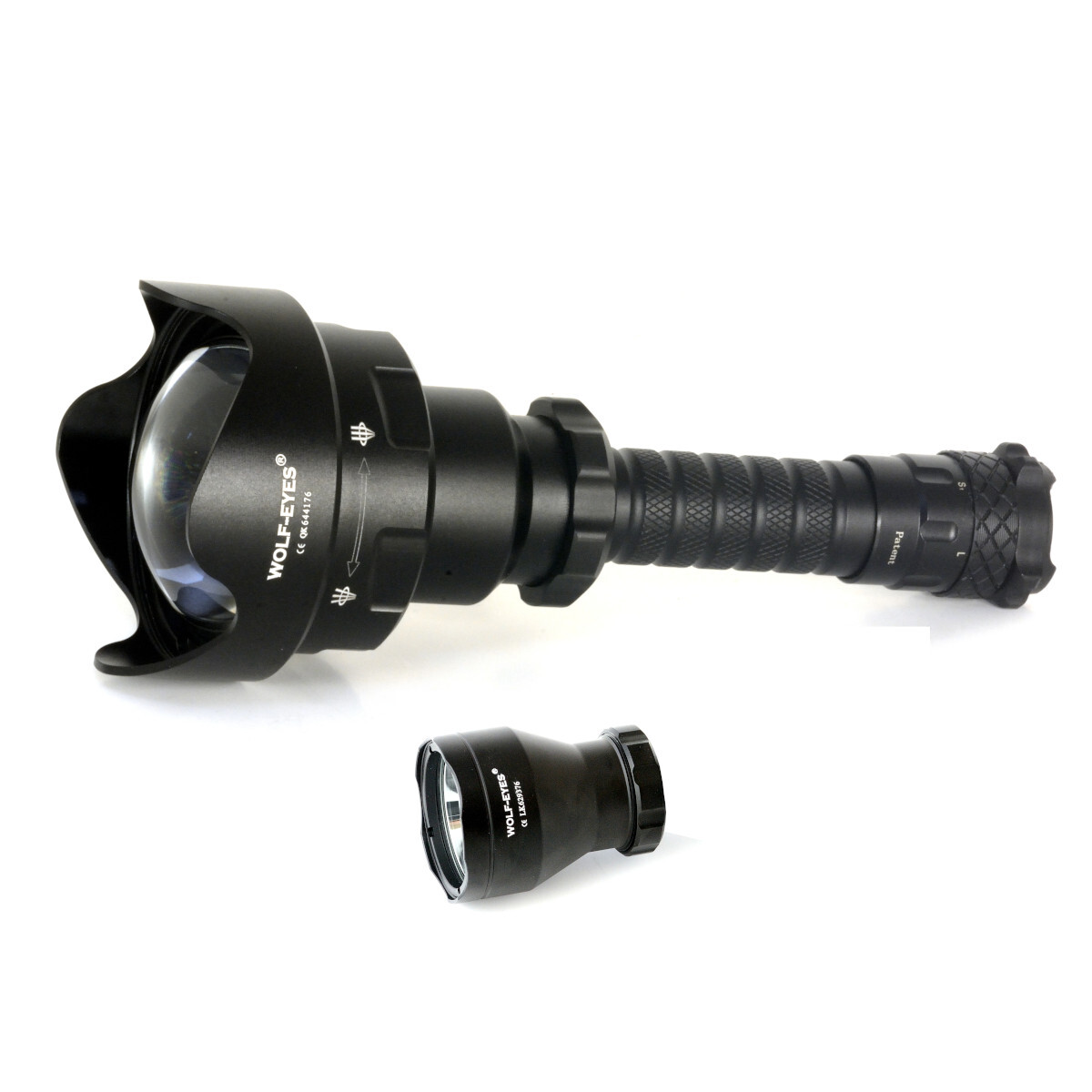

The Wolf Eyes Seal Pro Ultra torch was based on our original Seal Pro which was designed from the start to be adaptable, using the large aspheric head for long distance work like security on a property or use the smaller head to be pocket sized and give flood.   The Seal Pro Ultra utilises our standard 25.4mm (1”) torch body size, this 6061-T6 aluminium alloy body is lined with our brass Thermal Transfer Tube to wick damaging heat away from your high power 'Ultra' LED. We then have the huge 83mm aspheric LED head, this can reach out to 600 metres so you can see your sheds or front gates. If you have a security problem, this torch will work for you. Also there is the smaller 50mm reflector LED torch head, giving a bright spot surrounded by flood out to 200 metres, great for for using as a general torch. With the two heads you really do get two torches in one, your long distance thrower and acompact flood torch for close work.

This is the Procap version of our popular Wolf Eyes Seal torch, if you intend to mount it our regular version with Dual Tailcap is here:  Wolf Eyes Seal Hunting Ultra

The versions are identical except for the Tailcap. The Seal Pro 'Ultra' can also be mounted onto a scope and has exactly the same capabilities, the only difference is that it does not come with the pressure activated tapeswitch. We would highly recommend the Seal Pro 'Ultra' unit for customers that would rarely use it on a scope, as the Pro Cap does make it very user friendly to adjust outputs of the torch.

Light Output and Beam Pattern

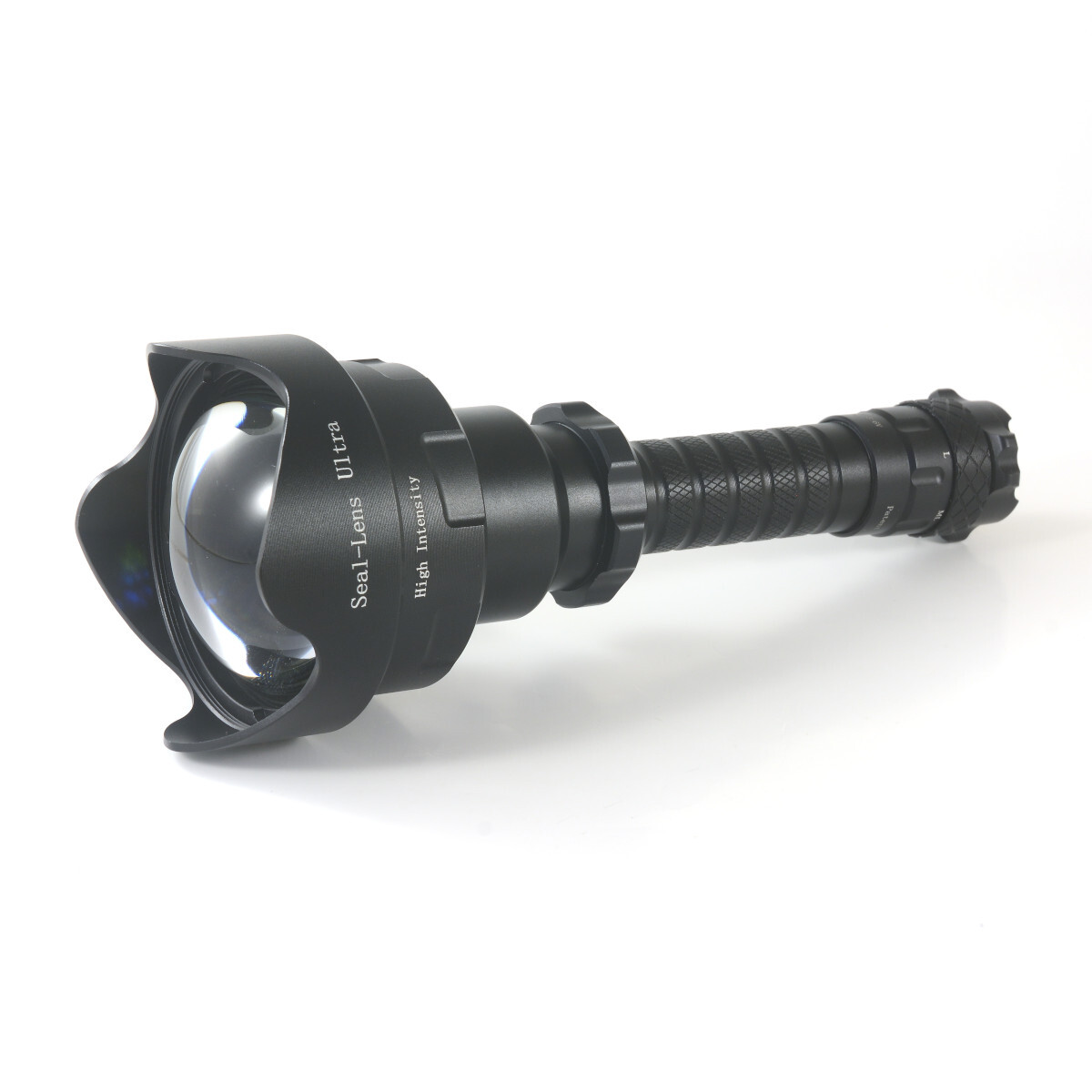

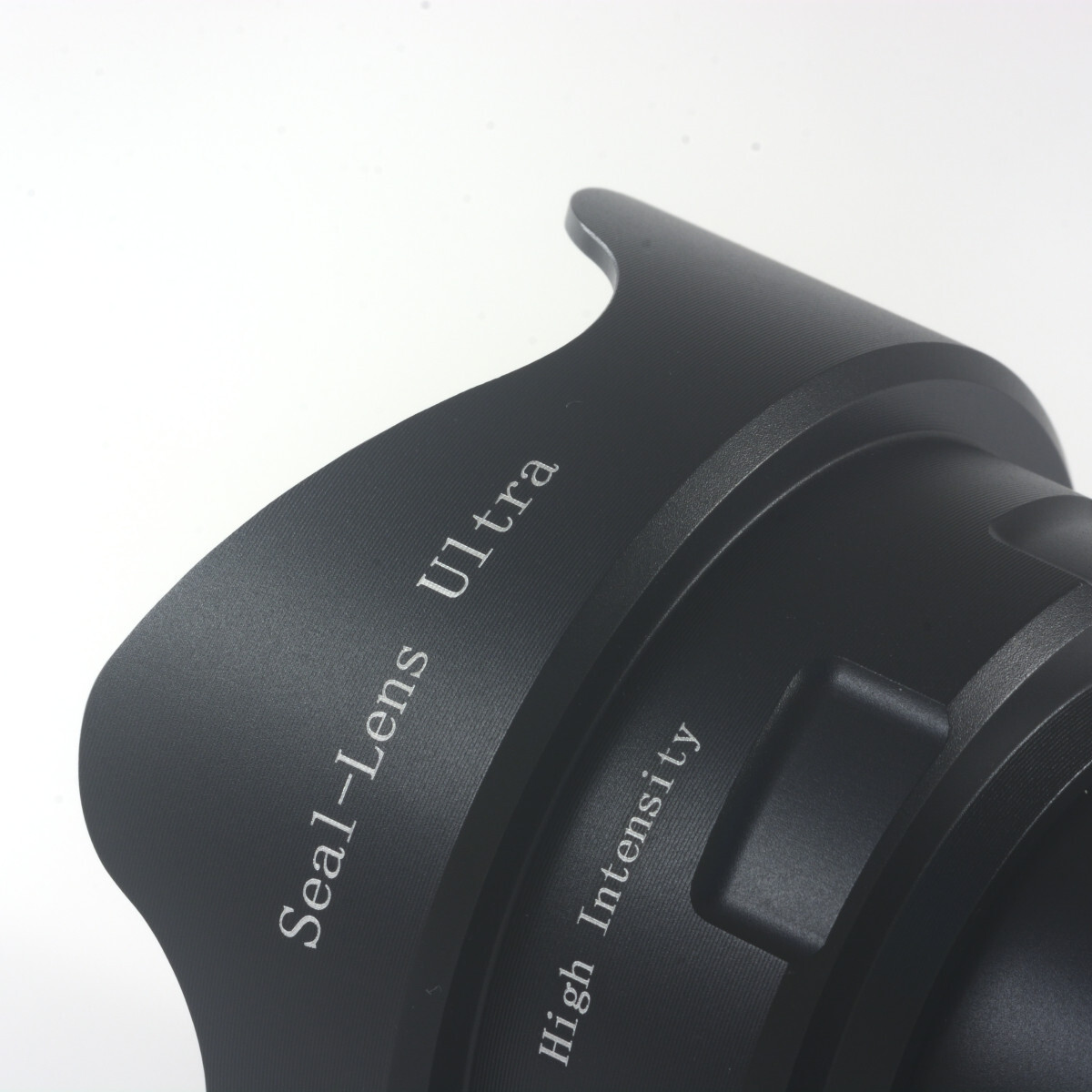

Of the two LED heads, the main spotlight head immediately catches your attention due to its 83mm size and huge aspheric (magnifying) lens. You then notice it is approximately the same 83mm back of the lens to the LED (similar to a magnifying glass lighting paper by the sun, this lens works best when set back the right distance from the LED). Of course all this size and depth of focus is to maximise the ultimate throw from the 'Ultra' LED in this torch, beyond what is normally seen in standard  mounted flashlights or internally powered lights. The 'Ultra' LED, lens size and lens focal length all combine to produce usable light at up to 600 metres (ANSI rate the  light at over a kilometre, though we don't think it is suitable to use at that distance and find the FL/ANSI ranges very, very optimistic). The focussing on this LED torch is rotary, which combined with a spring at each end in the battery compartment, means this LED flashlight can withstand heavy shocks. The large size and fine focussing capability of this torch head means it is even possible to focus for a slightly wider and shorter beam, something rarely effectively possible or recommended with aspheric lenses on LED torches

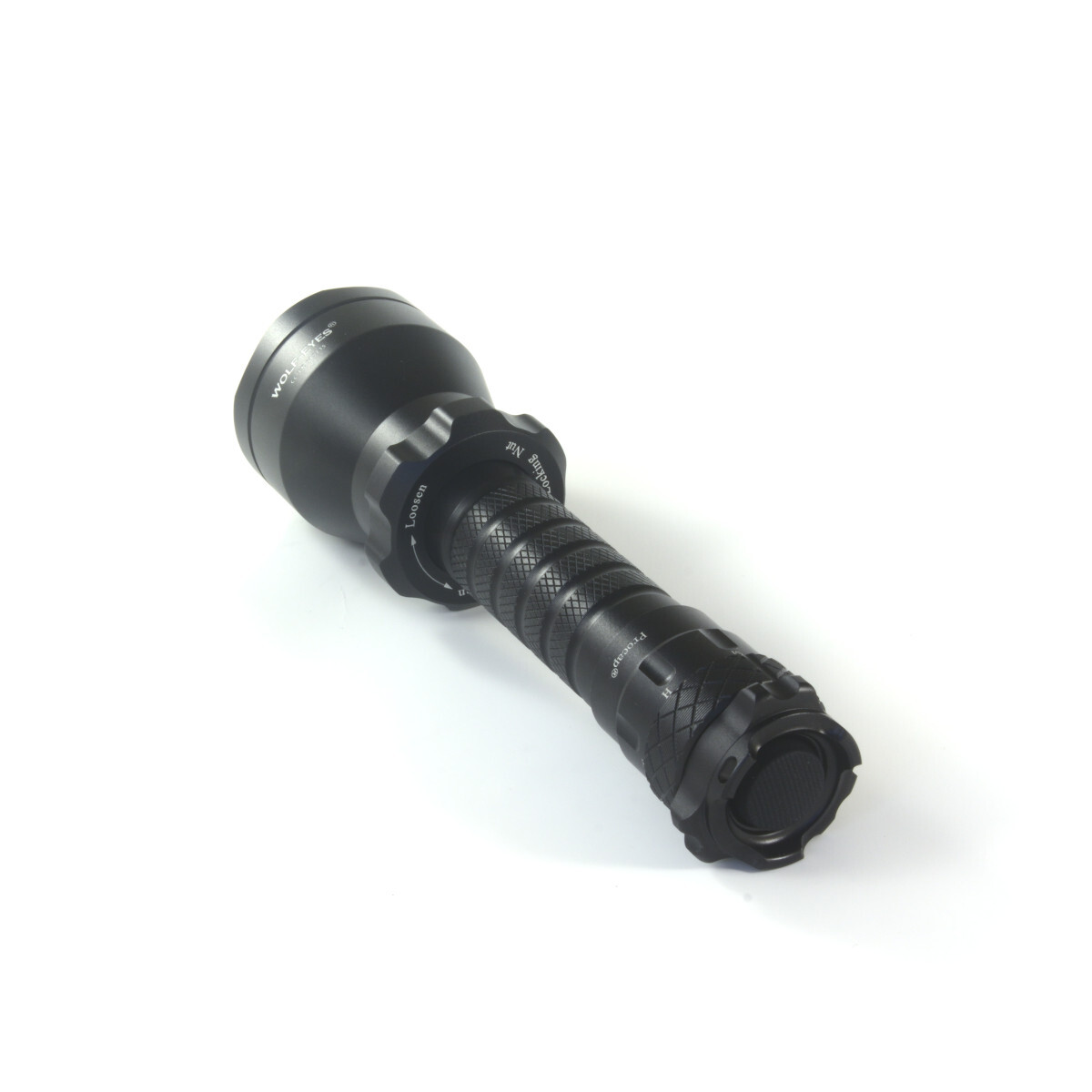

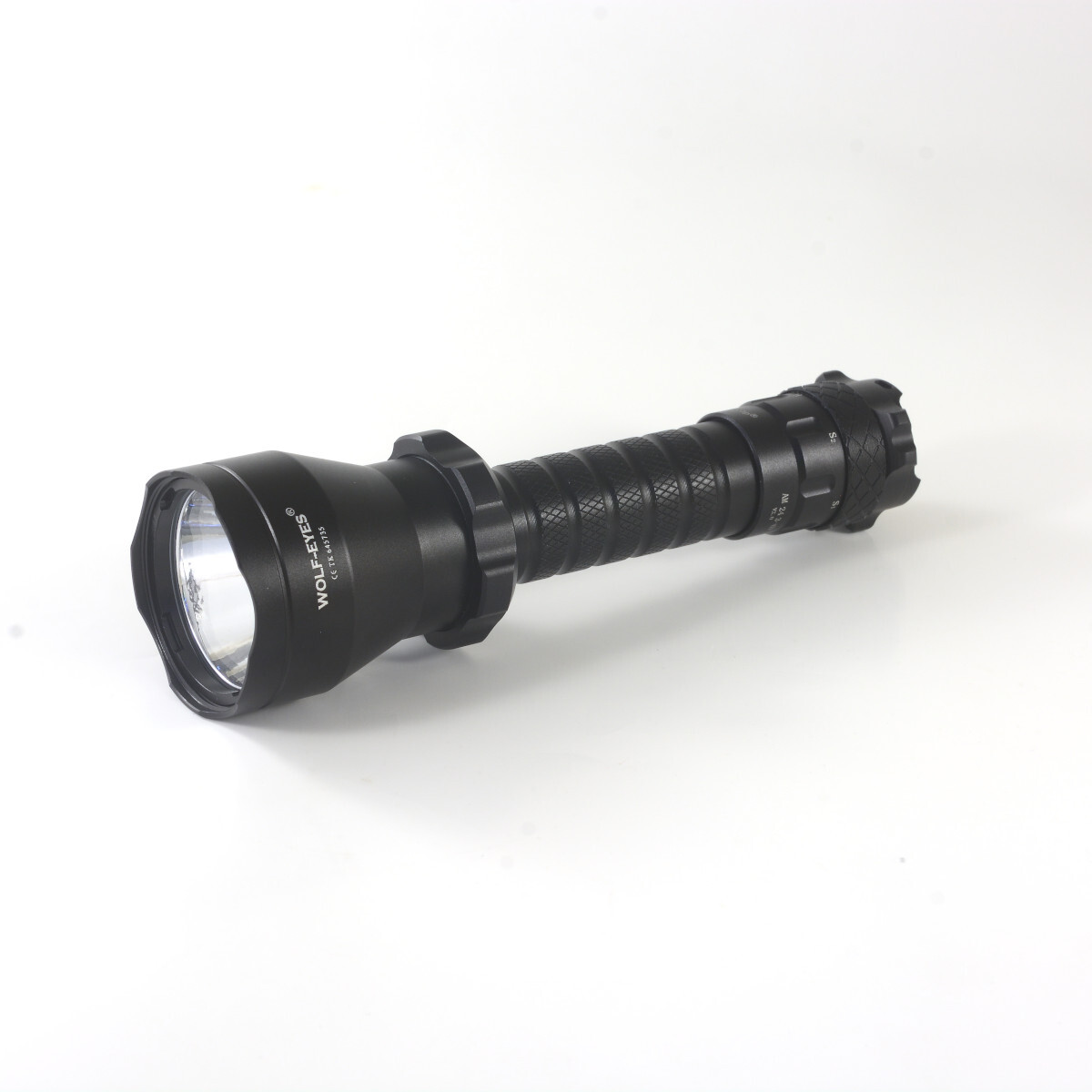

The smaller 50mm deep set mirror reflector 'Ultra' LED head provides a perfect combination of spot and flood light (in comparison to the aspheric head above which is all spot) out to about 200 metres.  The Seal Pro 'Ultra" LED torch with the reflector head is a very nice standalone flashlight, we can see many choosing to buy a Seal Pro 'Ultra' torch to use as their general flashlight, and then screw the aspheric lens on for that once a year trip. Others may choose the Seal Pro 'Ultra' LED torch because it offers the best of both an aspheric LED lens head and a reflector LED head torch - by actually having both heads! We believe the Seal Ultra is our best LED torch and one the best LED torches - we hope you do too!

One requirement the Seal Pro 'Ultra' torch is often used for is security on small or large acreage. The long throw of the Seal Pro 'Ultra' LED torch makes it perfect for checking on gates, sheds or fences and the very light weight means it can be used by people of all ages, sizes or strength. The Seal Pro 'Ultra' tailcap makes changing of levels output and strobes very easy.

Thermal Transfer Tube and Construction

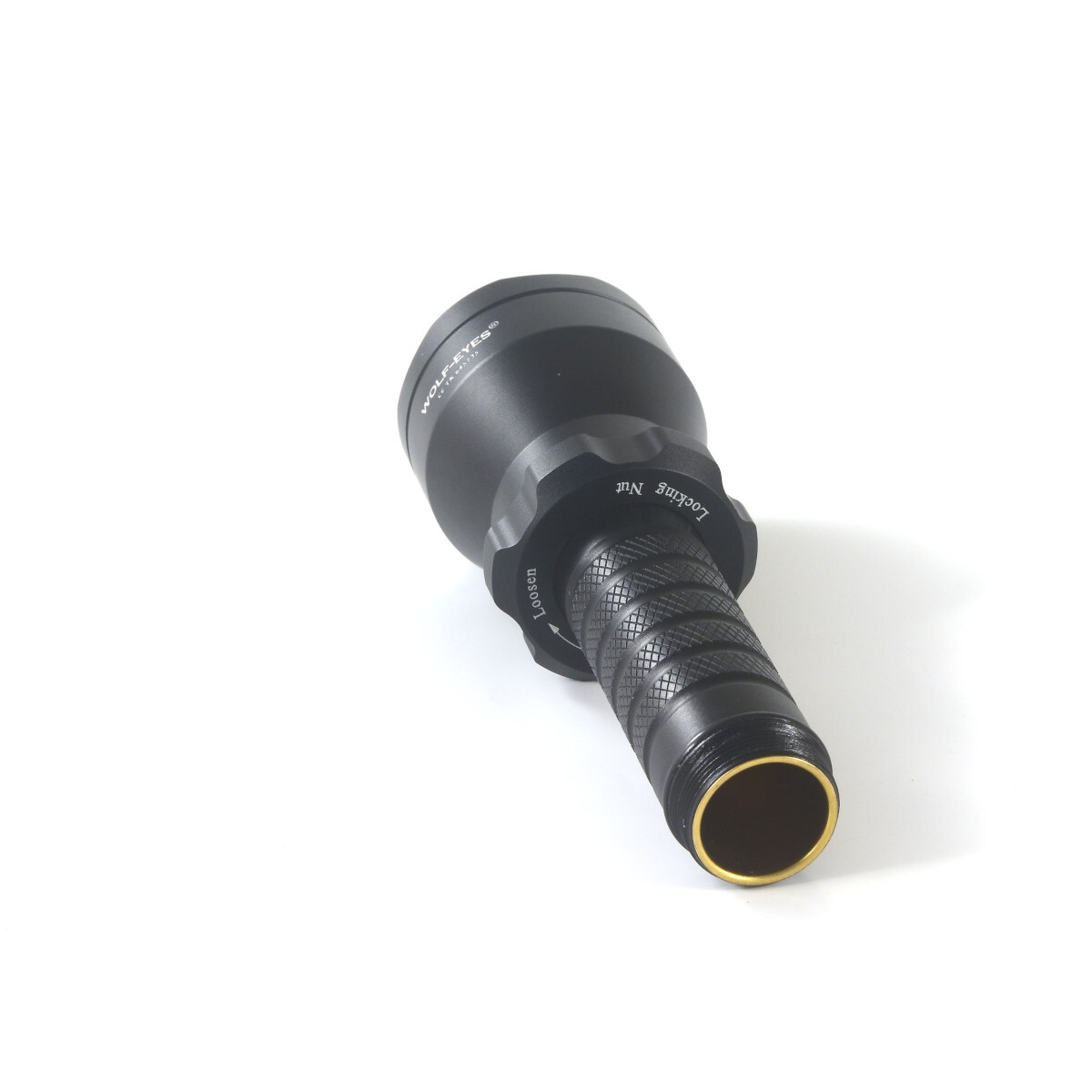

The Wolf Eyes Seal Pro 'Ultra' Torch is built with a Thermal Transfer Tube made of brass, wrapped around this is the 6061-T6 aircraft aluminium torch body in standard 25.4mm (1”)  size. There are three reasons for the brass liner, one is that the two materials together provides better strength for your torch than either material individually, two it provides better electrical conductivity and three, and most importantly, it draws heat away from the high output 'Ultra' LED and uses the full metal torch body as a heatsink to radiate the damaging heat away from your LED and lithium ion battery.. If LEDs are overheated they suffer permanently reduced output – very bad news for LED torches. While low power LEDs produce very little heat, high power LEDs now produce a lot of heat - as would be expected as they produce much more light than an equivalent size incandescent torch. We build our torches with pride to last and adequate heatsinking to run at full output all the time.

The Seal Pro 'Ultra' weighs 426 grams with battery or 378 grams without, to give an idea that is roughly the weight of a can of Coca Cola (12 grams heavier) - somewhat less than it looks. There is a fair amount of air in the head and we have worked hard since the initial release to lose over 100 grams from the total weight, while still having enogh heatsinking material in the body for a long lifespan for your LED and electronics.

Finally the whole torch body is low temperature (-20o C) Hard Anodized in tactical black for a non reflective durable finish.

Procap

The Seal Is also available with a Pro Cap instead of the Dual Hunting Tailcap. The Seal Pro 'Ultra' model has the same performance with a Pro Cap, the advantage of the Seal with the Pro Cap is that you can pre select the level of output you require before or after turning the Seal on instead of soft clicking through the modes with the Dual Tailcap.

The Seal Pro 'Ultra' version is also suitable to be mounted as it has a spring in the Pro Tailcap just like the Dual Tailcap does.

We would recommend the Seal Pro 'Ultra' model if the torch was to be used primarily for general purposes and only a small percentage of the use to be mounted.

While unlikely that anyone will use the Seal Pro 'Ultra' as a torch with the Magnetic Mount  it is worth noting the magnets in the Procap are not compatable with the magnetic mount, we suggest installing the standard  dual tailcap if using that mount.

Regulation
Almost all Wolf Eyes LED Headlamps and Torches are regulated, and the flagship of our LED hunting torches is no exception. As batteries go flat they lose voltage, which reduces light output, sometimes imperceptibly (especially at the start) but often quite noticeably. Not ideal in a spotlight! The Seal LED Torch has an inbuilt regulation unit, which means as the voltage is reduced the amperage is increased meaning the optimum current is still being supplied to the LED – and you still have light to see your quarry, even with a ¾ flat battery!

Rechargeable Batteries
The Seal Pro 'Ultra' uses a LRB168HDB (18650- High Discharge Battery) lithium ion protected batteriy. This is the same size as the rest of the Wolf Eyes LED torch and headlamp range, meaning you can share this batterry between your torches and headlamps. Your other Wolf Eyes batteries are not recommended to use in the Seal Pro 'Ultra', they will work but not let the torch reach maximum output.  Due to the lithium ion batteries good output only one is required, meaning we can keep the 25.4 mm (1”) torch body size and modest length. These are protected batteries, meaning there is a computer protection chip built into the battery, which controls charging, discharging and most importantly over discharging. Being rechargeable means low running costs for you. Two disposable CR123A batteries will also power your Seal Pro 'Ultra' LED torch.

LED

We use a new 'Ultra" LED which is designed as an LED to throw.

Cold Weather

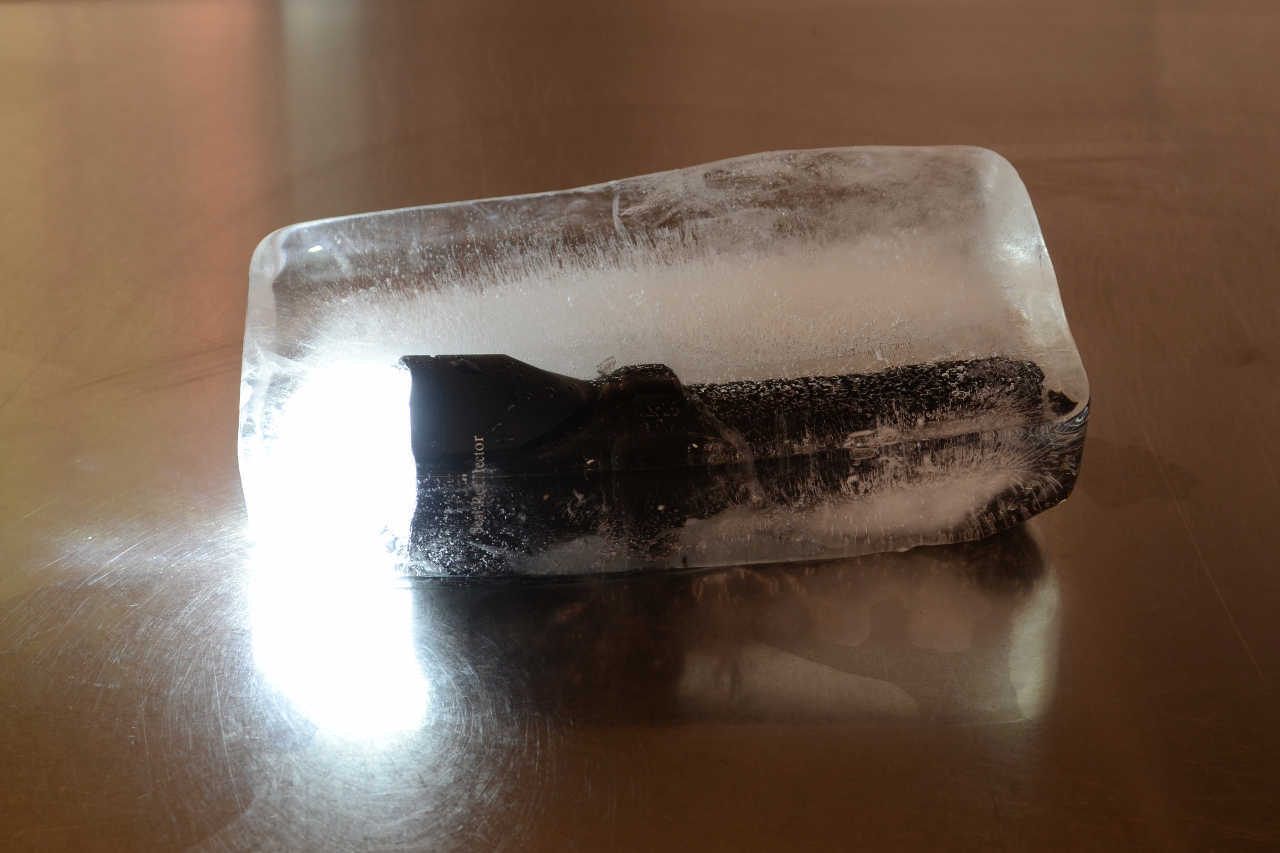

The photo showing the Wolf Eyes Seal Torch inside an ice cube shows how well the Seal torch handles cold conditions – we doubt too many like to go outside frozen inside an ice cube, though sometimes it feels like it!

Australian Approved Charger

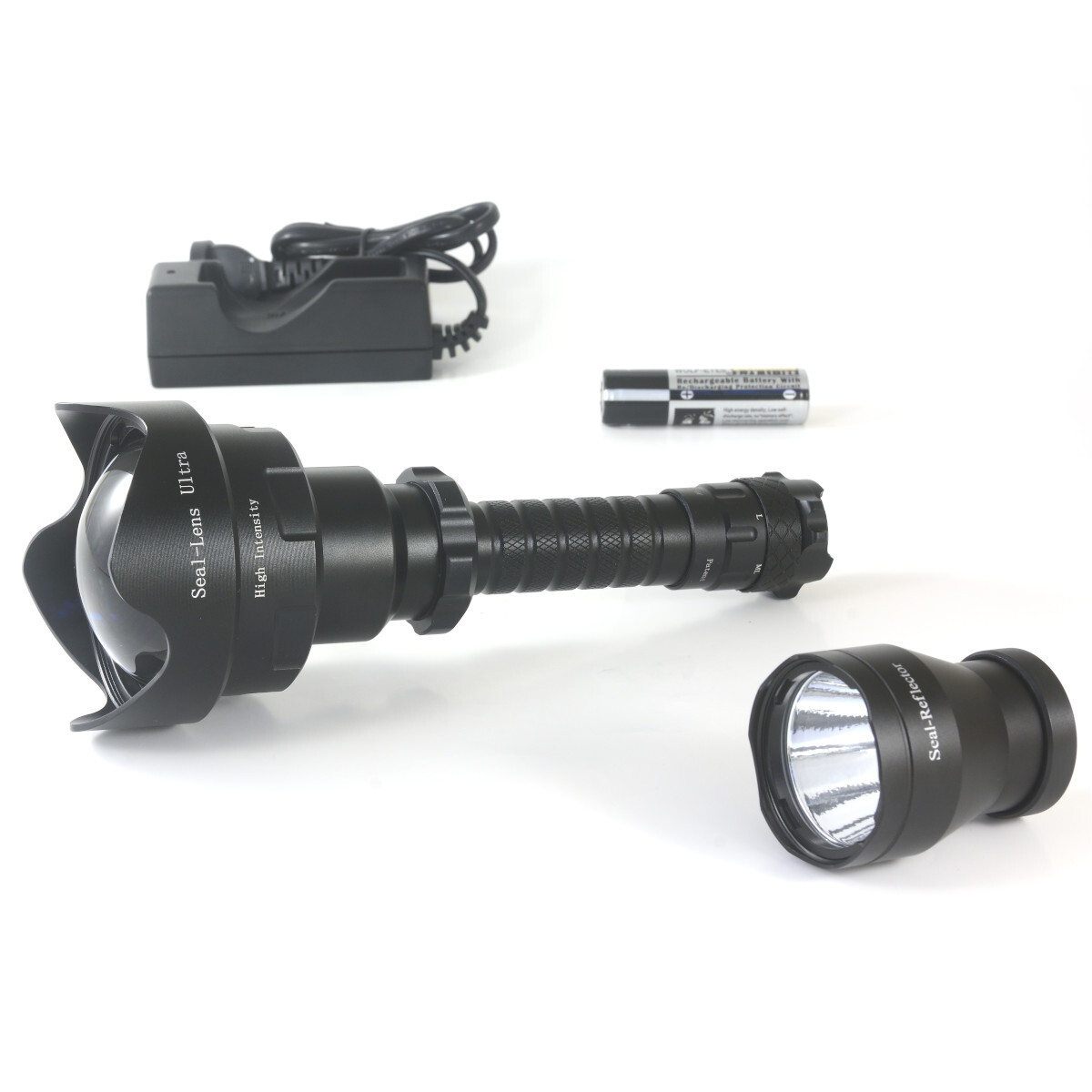

The provided Seal Pro 'Ultra' Flashlight Charger is Australian Approved which means it is safe and legal for you to use but also means all your farm, building, home, etc insurances apply.

Support
Wolf Eyes Torches have numerous Police & Military (including all of SAPOL) contracts which mean that both contractually and morally we are obliged to keep a large range of flashlight and headlamp spares available in Australia. We also have a 1300 911 007 for questions and queries so help is a phone call away. The Wolf Eyes Tactical Torches 1300 911 007 number has a 24 hour live answering service so you can log calls after hours.

Distance

Recently we have been asked how we come up with our distance guides for our LED torches. This has also been asked due to some other LED torches being rated at 1km, 10km (seriously!), etc.

We use an A3+ (329 x 483mm) white board which we then place in a dark field and see how far away we can see this visibly light up the board with the naked eye. This is representative of what we would call ideal conditions in terms of use, obviously a well camouflaged animal will be harder to see. Often a well camouflaged animal can be hard to see at 20 metres! Of course the other side of this is that a 50 or 56mm objective scope will actually enhance the amount of light the user sees (unless you are using it on a higher magnification than say 8 to 10X where you will then shrink the exit pupil). So we would reasonably expect these to be accurate for an average user, though some will have better or worse eyes, more experienced outdoors people will have a better recognition of outlines and shapes, etc. For our eyes the large aspheric Seal head when viewed through a 56mm scope seems like daylight at 300 metres. The aspheric (magnifying glass) head has greater throw as it concentrates all the light into one beam, the reflector head gives a spot surrounded by flood beam.

We use this system with a white board as it allows it us to compare between our models accurately. Some have suggested we should test on live animals, the reality is it takes a few hours to test, measure with a tape (not rangefinder) and try different torches. We don't have any tame foxes we can leave there for 3 hours! Knowing our method allows you to assess what range you think you can get out of it, some with good scopes, young eyes and only a dim id requirement may get more, those older (you eyes pupil loses the ability to expand and let more light in as you age, especially over 40 years of age - sorry), using scopes on high magnification or who prefer a brighter sight picture will get less.

To be fair I think when others rate their torches they are not saying how much usable light at that distance - they may be quoting 1 candlepower where most would not consider that enough to see by, especially at long distance. I am guessing the companies quoting 10km are quoting how far away you can see the light when looking back at the torch – though even that is a big ask on flat ground, the horizon is only 4.7km away! If you are 30 metres in the air that rises to near 20km so lets give the 10km claims that benefit as well.

One fair way to evaluate claims is to think about spotlights on a 4WD or truck. Most of us have these spotlights or have been in a vehicle with spotlights ranging from 240 to 300 mm in diameter, with LED, halogen or HID filaments and with the vehicle battery & alternator as a power source. Did these lights shine 10kms? Or even 1km? Maybe 1/2km? This probably gives you an idea of the chance of a torch with a smaller light source, smaller reflector and much smaller power source achieving these figures. Audi has recently released optional Laser high beams on their $400K R8 sports car. This system is so powerful that as well as only coming on above 60kmh there is a camera system to automatically dim, turn away or turn off these lasers when other vehicles are detected. With 4 lasers in each module, the claims are only for 600 metres - less than some LED torches claim :)    - details here Audi Laser Lights.

SAR

Search and Rescue. Recently a number of departments have purchased this torch as a search and rescue light. This torch, while predominantly designed for rural use, is eminently suited for this use due to it's long throw from a very lightweight package. We would recommend a second battery when being used for search and rescue functions as SAR demands longer runtimes than usual of LED torches and lights. One unit in particular purchased the Wolf Eyes Seal Pro due to it's light weight which enabled it be used when abseiling down cliff sides.

A review by 'Flashlight Crazy' of the Seal Ultra is here: Review

Blown up centre of a photo showing a Seal Ultra lighting up a woman in a dark jacket at a bit over 200 metres.

A video of a Wolf Eyes Seal Ultra lighting the grass in a park at over 700 metres. For size reference the park is lit by a single streetlight and it is a full size plane travelling overhead



A video of a Wolf Eyes Seal Ultra lighting up a Royal Australian Navy Vessel at over 400 metres against the lighting from the two wharves.
