Weight with battery: 315 grams
Length: 190 mm
Beam Type: Aspheric – spot adjustable to flood
Light Output and Beam Pattern

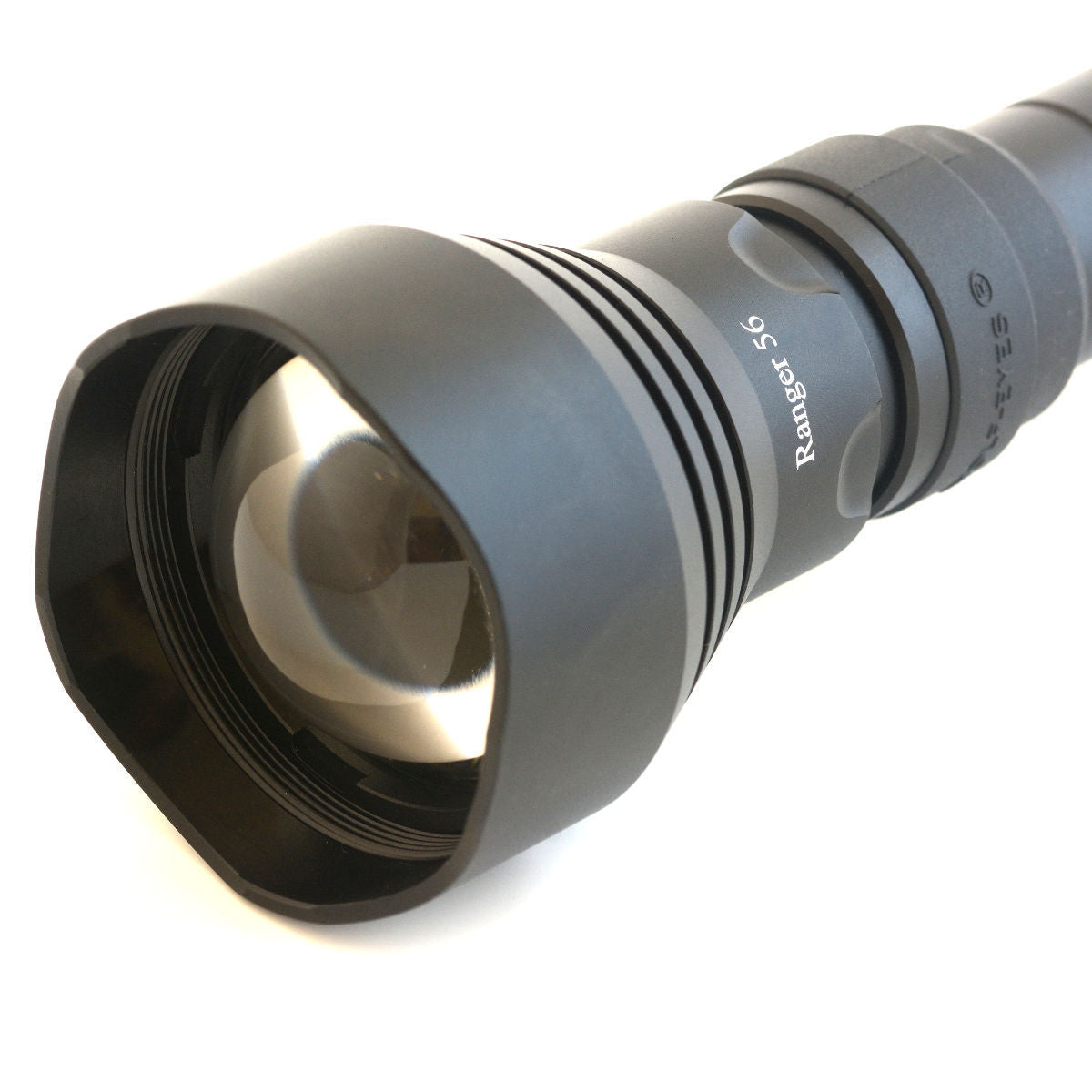

The Ranger 56 RED LED torch with its large aspheric head and greater focal distance than usual between LED and aspheric lens (magnifying glass) concentrates every one of its lumens into it’s spot to provide a good beam out to 150 - 200 metres. This can be adjusted back to flood. The Ranger RED comes in the Procap version which has four levels and two strobes.
The runtime for this powerful throwing LED torch is 1 hour 30 minutes on High (100%), 2 hours 52 minutes on Medium/High (50%), 5 hours on Medium (20%) and 45 hours on Low (2%).
Red

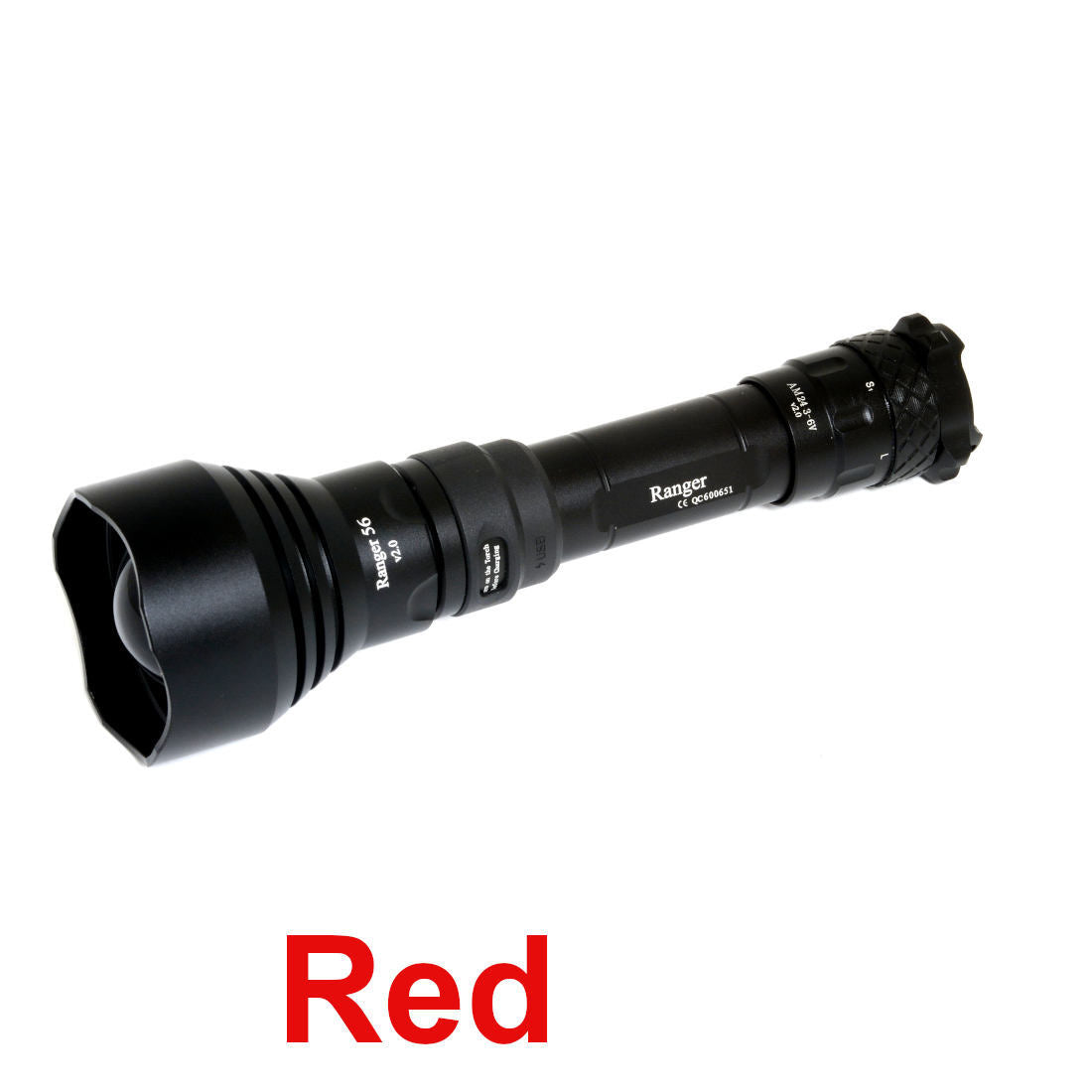

The Ranger is available in a RED version for those who want to be less obvious to their game. Red traditionally isn't a high impact light to either animals or humans, so the large head of the Ranger 56 RED LED torch really helps in getting that red light downrange.
The Ranger RED comes with a Pro Cap, a dual tailcap can be used on this torch also.
The Wolf Eyes Procap has one easy large button and then allows easy changing of levels by rotating a ring on the base of the torch and offers two strobes and four levels of light output.
It is worth noting the magnets in the Pro Cap are not compatable with the magnetic mount, we suggest installing the standard Dual Tailcap if using a magnetic mount.
TTT and Construction

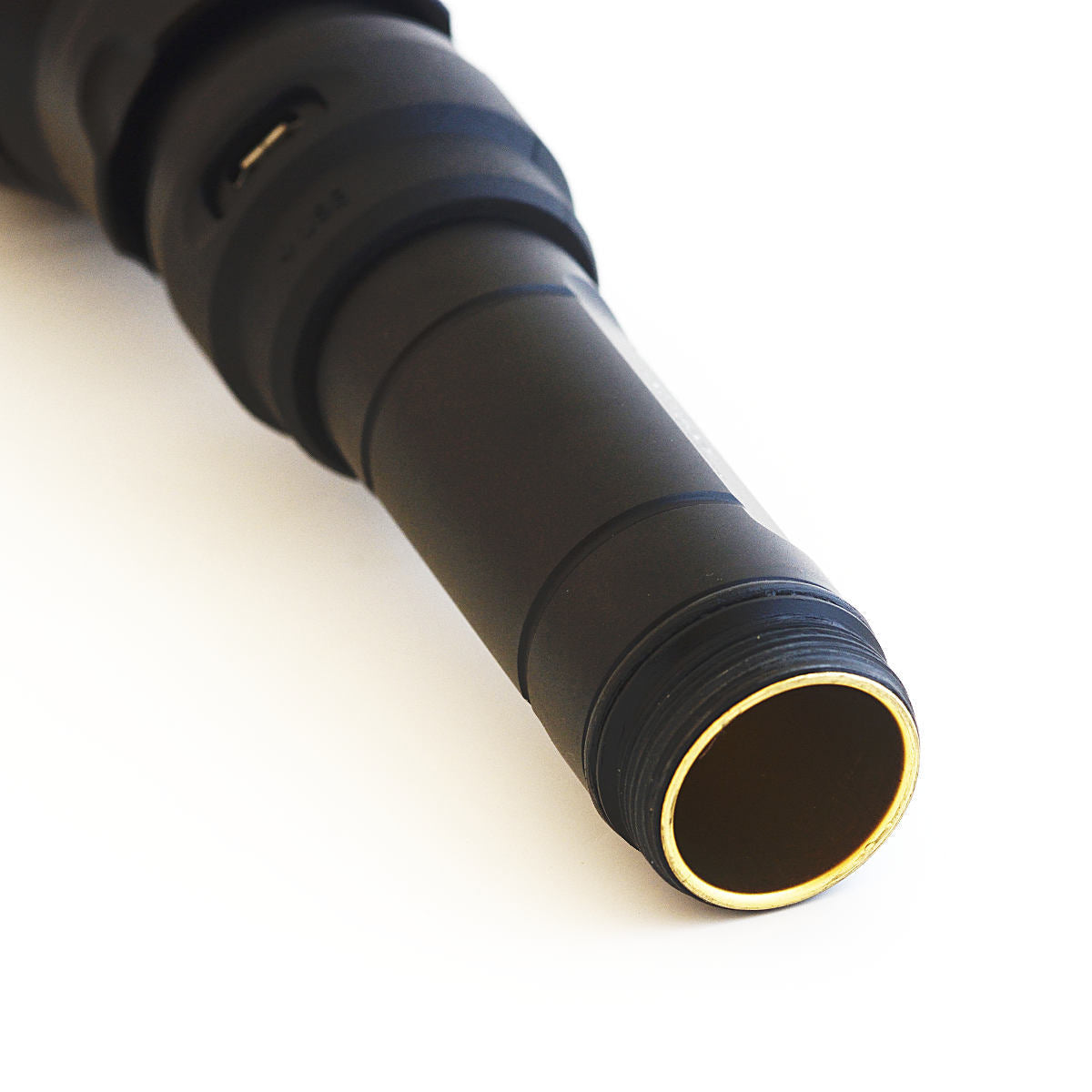

Like all of the Wolf Eyes General and Hunting Torches the Ranger 56 torch is built around the brass TTT – Thermal Transfer Tube. The Thermal Transfer Tube has three benefits, it strengthens the total body structure, it enhances electrical conductivity and most importantly drags damaging heat away from LED. If overheated LEDs suffer permanently reduced output. This means your LED torch has reduced output for the rest of it's life, a common complaint from LED torches with lightweight bodies which provide little to no heatsinking. Modern LEDs produce little heat in low output form, but in high output form they then produce high heat outputs. It is worth remembering that LEDs now produce many times the output of a similar size incandescent torch.
The rest of the torch's body is made from aircraft grade aluminium 6061-T6 which is then low temperature (-20o C) Hard Anodized tactical black.
Regulation
The Ranger RED LED Torch is regulated, meaning the torch doesn’t dim as the battery flattens. Torches usually dim as the battery flattens, sometimes just a little and often a lot. This is true of incandescent torches and LED torches. This is because the battery reduces in voltage as it flattens or discharges. The solution to this is regulation, this increases the amperage as the voltage is reduced, so the optimum power or current is always supplied to the LED ensuring your torch continues at optimum brightness. This also ensures your LED wont partially overheat from a too strong battery, again causing reduced output for the life of the torch.
Adjustable Focus
The Ranger RED LED flashlight has adjustable focus from spot to flood. This adjustable focus is achieved by screwing the head (rather than push/pull) so the torch is more resistant to recoil.
Rechargeable Batteries
The Wolf Eyes LRB168P lithium ion battery (18650) supplied with the Ranger RED LED torch is also used in all our other mountable torches, LED torches and headlamps, giving you interchangeability. This is both an energy dense battery (meaning you only need one and so can keep the 25.4mm – 1” -standard firearm body size) and also protected for your safety. The Dual Tailcap also features a spring within it, combined with the spring at the front of the battery compartment, the two springs contain the lithium ion rechargeable battery which can move but electrical contact is maintained at all times, even with the recoil.
Cold Weather
All Lithium Ion powered Wolf Eyes LED torches work well in cold weather, the Ranger RED LED mountable flashlight is no exception, being rated from -20o C to +60o C.
Australian Approved Charger

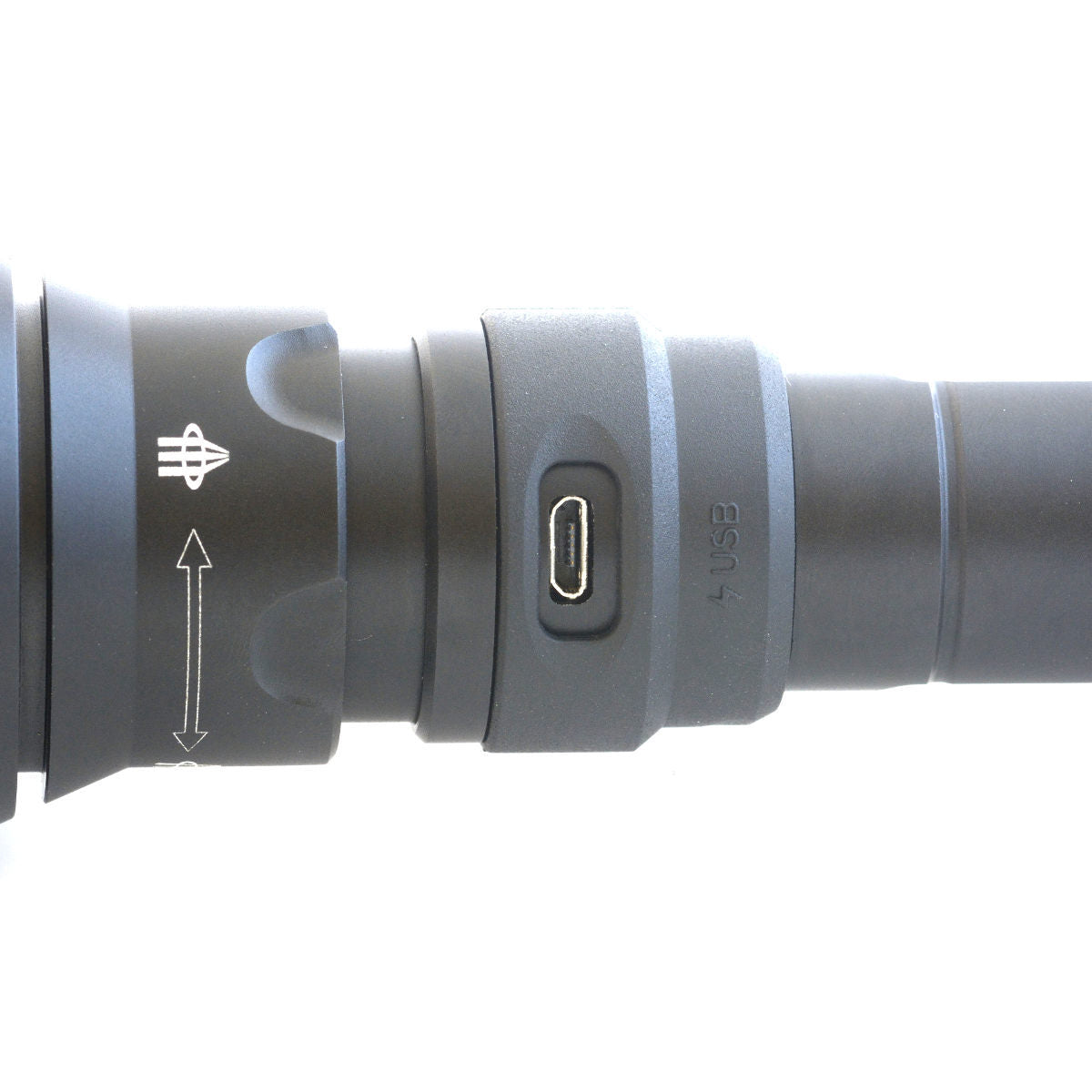

The Ranger RED LED torch features USB internal charging, meaning you can recharge it from any USB point, in your car, office, powerbank, etc. The charger with your Wolf Eyes LED Torch is Australian Approved, meaning that you can feel safe using it and all your insurances will apply.
Support
Your Wolf Eyes Torch is fully supported within Australia. We have spares here with solid stocks to support our Police and Military partners, we also have a 1300 911 007 phone number to provide over the phone assistance. After hours there is live answering on this line so you can be looked after during working hours.
