Length: 190 mm
Beam Type: Aspheric – spot adjustable to flood

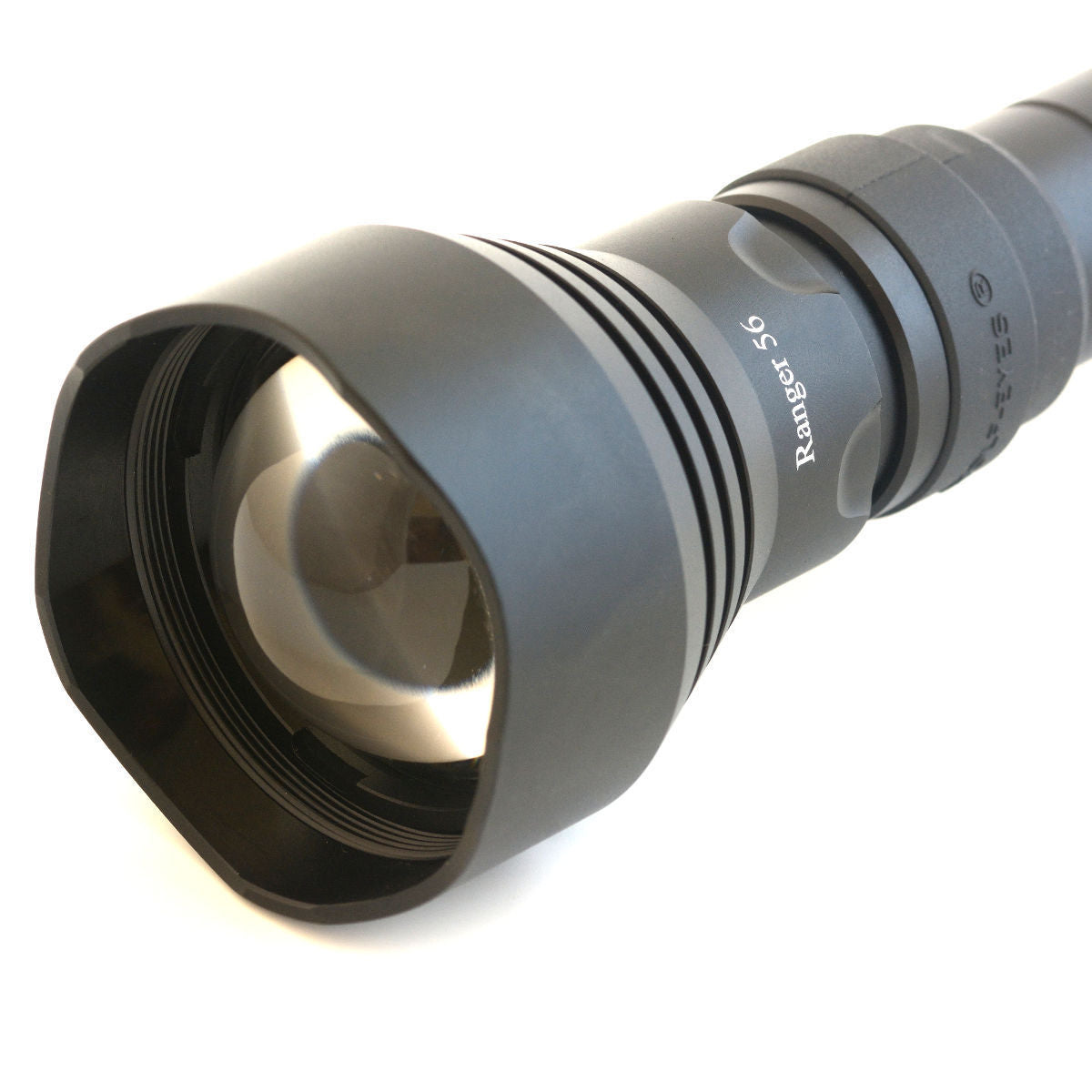

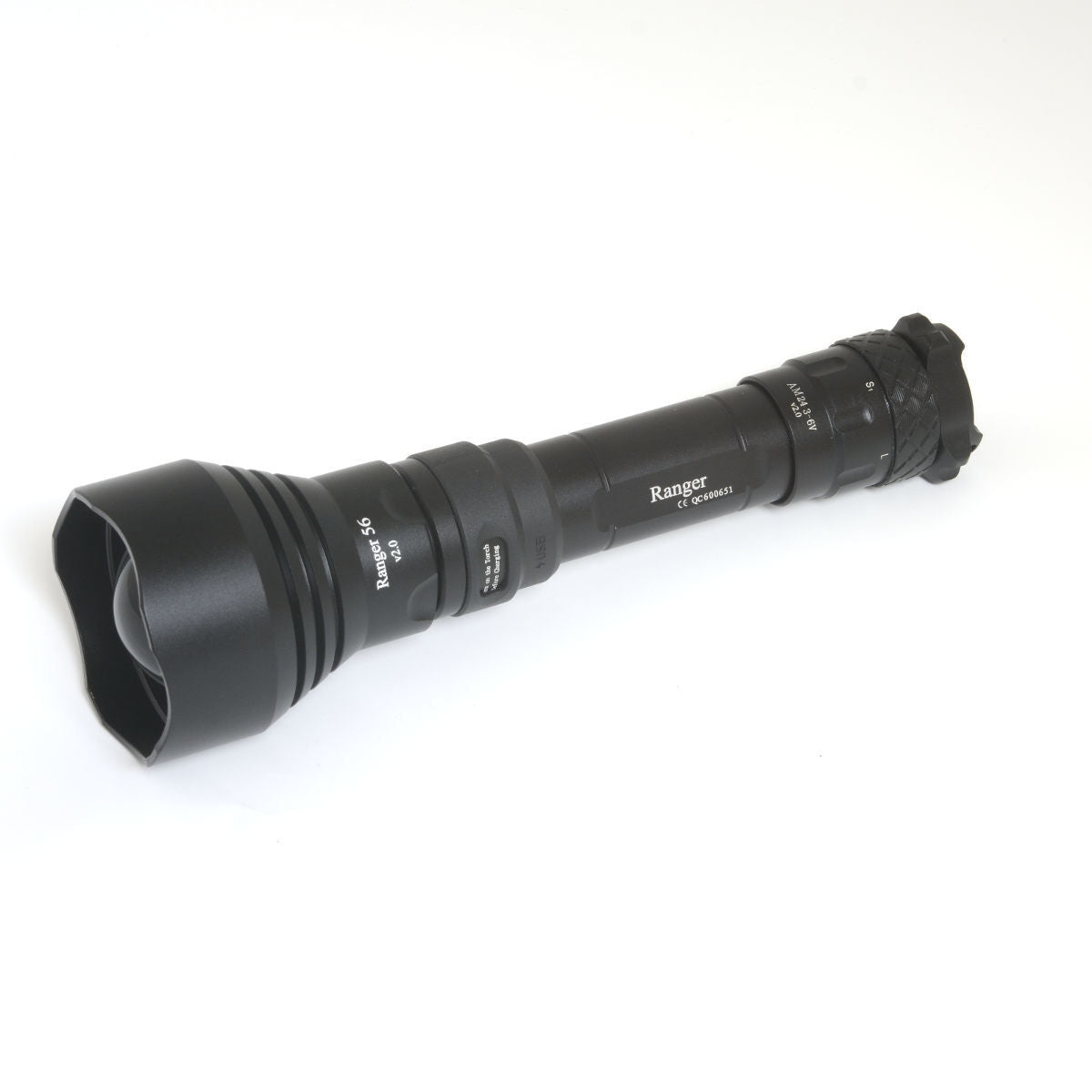

The Ranger 56 IR (Infra Red) LED torch puts out invisible 'black' light in the 850nm range. This is the Infra Red version of our Ranger 56 LED torch, this version is designed for those who own Night Vision gear such as optics, binoculars, goggles or spotting optics. Due to this torch's large head and good distance between IR LED and aspheric lens, the Ranger 56 IR LED torch makes a tremendous IR (Infra Red) illuminator, well suited to those who want to substantially increase the range and clarity of their existing Night Vision scope, binoculars or optics. Many clients have seen a 60% to 100% improvement in range compared to their existing IR Infra Red illuminator.
Weight with battery is 315 grams.
TTT and Construction

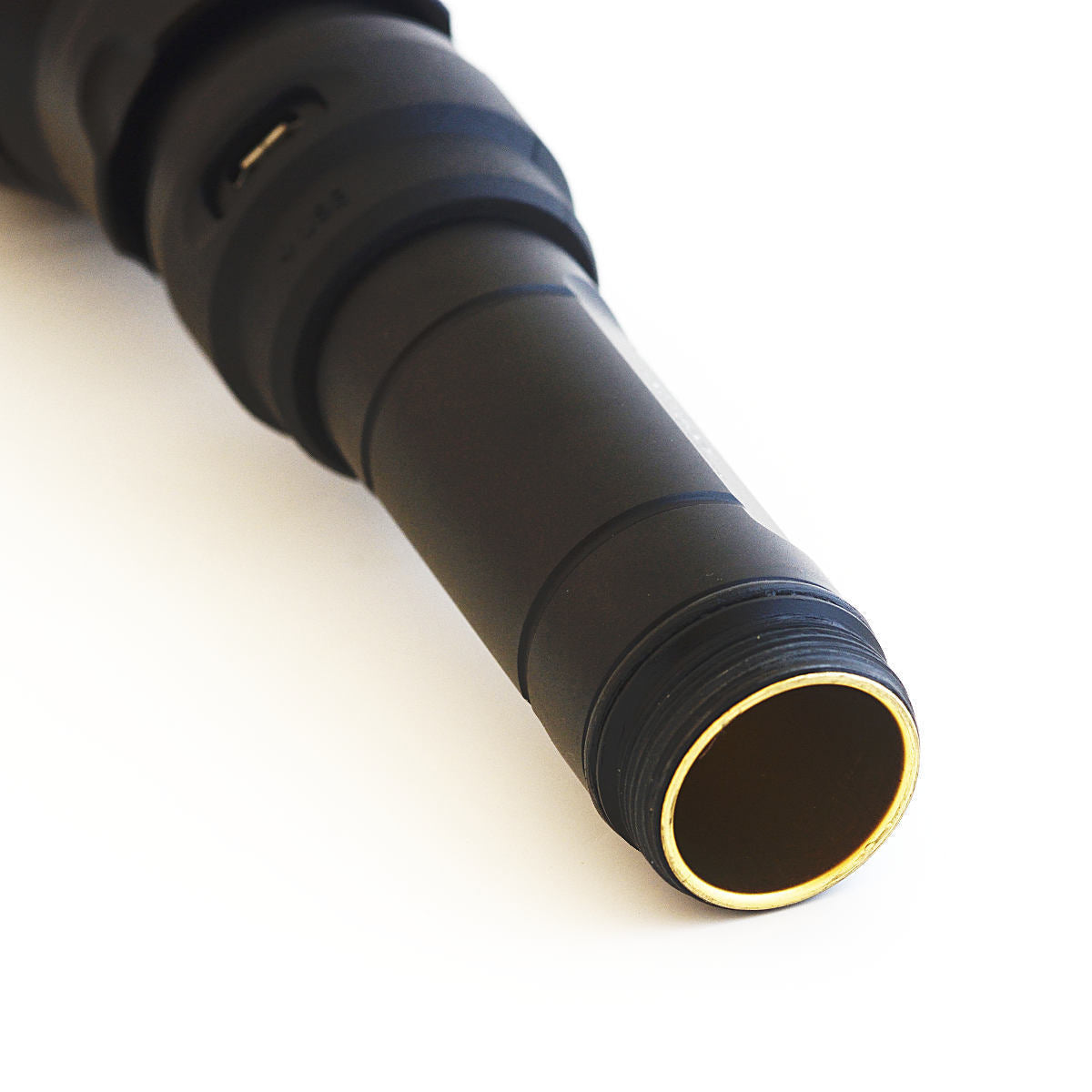

Like all of the Wolf Eyes LED mountable torches the Ranger 56 IR torch is built around the brass TTT – Thermal Transfer Tube. The Thermal Transfer Tube has three benefits, it strengthens the total body structure, it enhances electrical conductivity and most importantly drags damaging heat away from the torch's LED. If overheated LEDs suffer permanently reduced output for the rest of the life of the torch.
The rest of the torch body is made from aircraft grade aluminium which is then low temperature (-20o C) Hard Anodized tactical black.

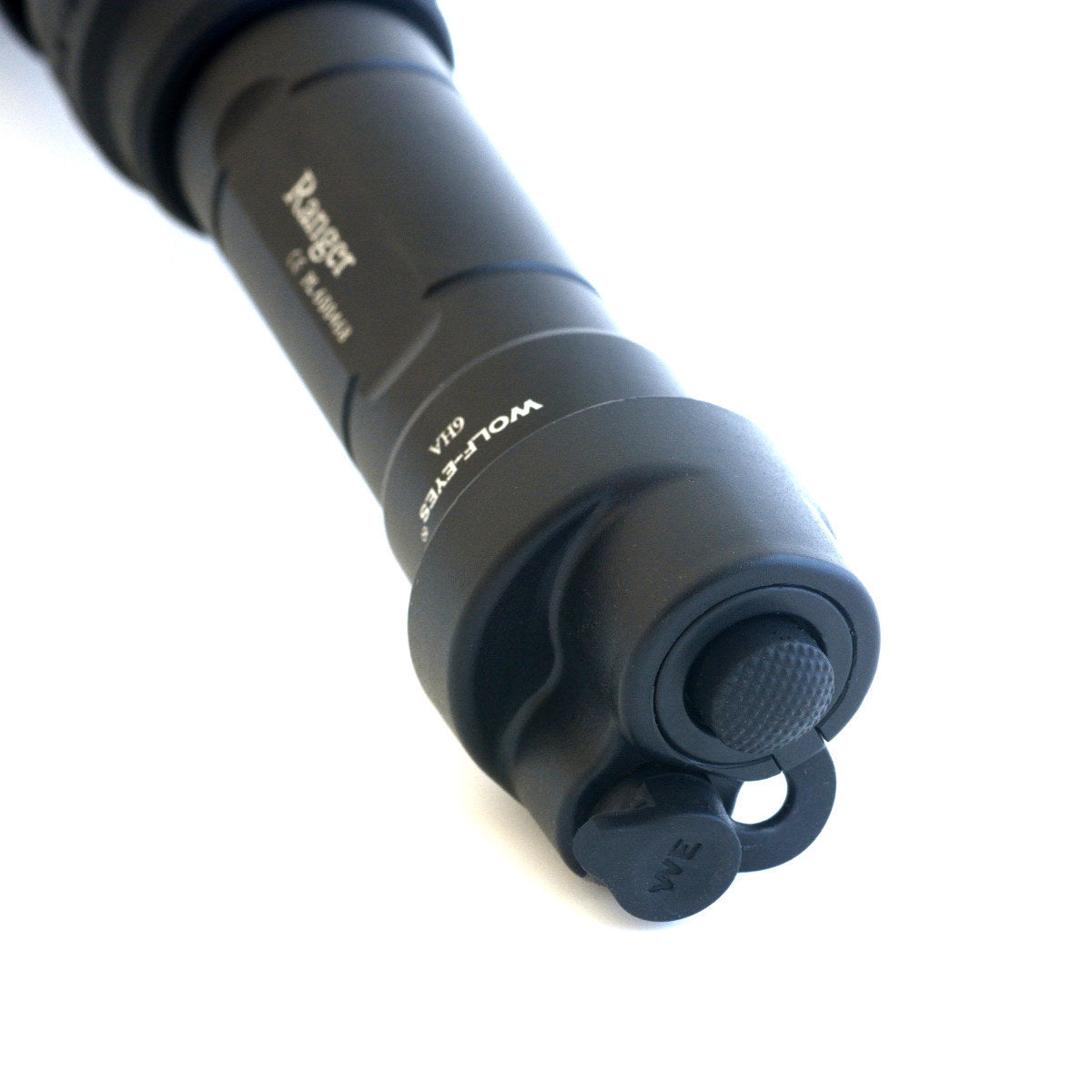

Procap
The Procap is a conventional tapeswitch in the centre but has a ring around the outside to change levels. This can be used to change the level of output of the torch when it is on or before it is turned on. It is worth noting the magnets in the Procap are not compatible with the magnetic mount, we suggest installing the standard tailcap if using that mount.
Regulation
The Ranger 56 IR LED torch is regulated, meaning it doesn’t dim as the battery flattens. Torches usually dim as the battery flattens, sometimes just a little and often a lot. This is because the battery reduces in voltage as it flattens. The solution to this regulation, this increases the amperage as the voltage is reduced, so the optimum power or current is always supplied to the LED. This gives you the confidence to use the torch over more than one night, not having to worry you may have reduced output which is hard to check on an IR illuminator.
Adjustable Focus
The Ranger 56 IR LED flashlight has adjustable focus from spot to flood. This adjustable focus is achieved by screwing the head (rather than push/pull) so the torch is more resistant to recoil.
Rechargeable Batteries
The Wolf Eyes LRB168P lithium ion battery (18650) supplied with the Ranger 56 IR is also used in all our other mountable torches and headlamps, giving you interchangeability. This is both an energy dense battery (meaning you only need one and so can keep the 25.4mm – 1” -standard firearm body size) and also protected for your safety. Being rechargeable means low running costs.
Cold Weather
All Lithium Ion powered Wolf Eyes LED torches work well in cold weather, the Ranger 56 IR Infra Red LED hunting flashlight being rated from -20o C to +60o C.
Australian Approved Charger

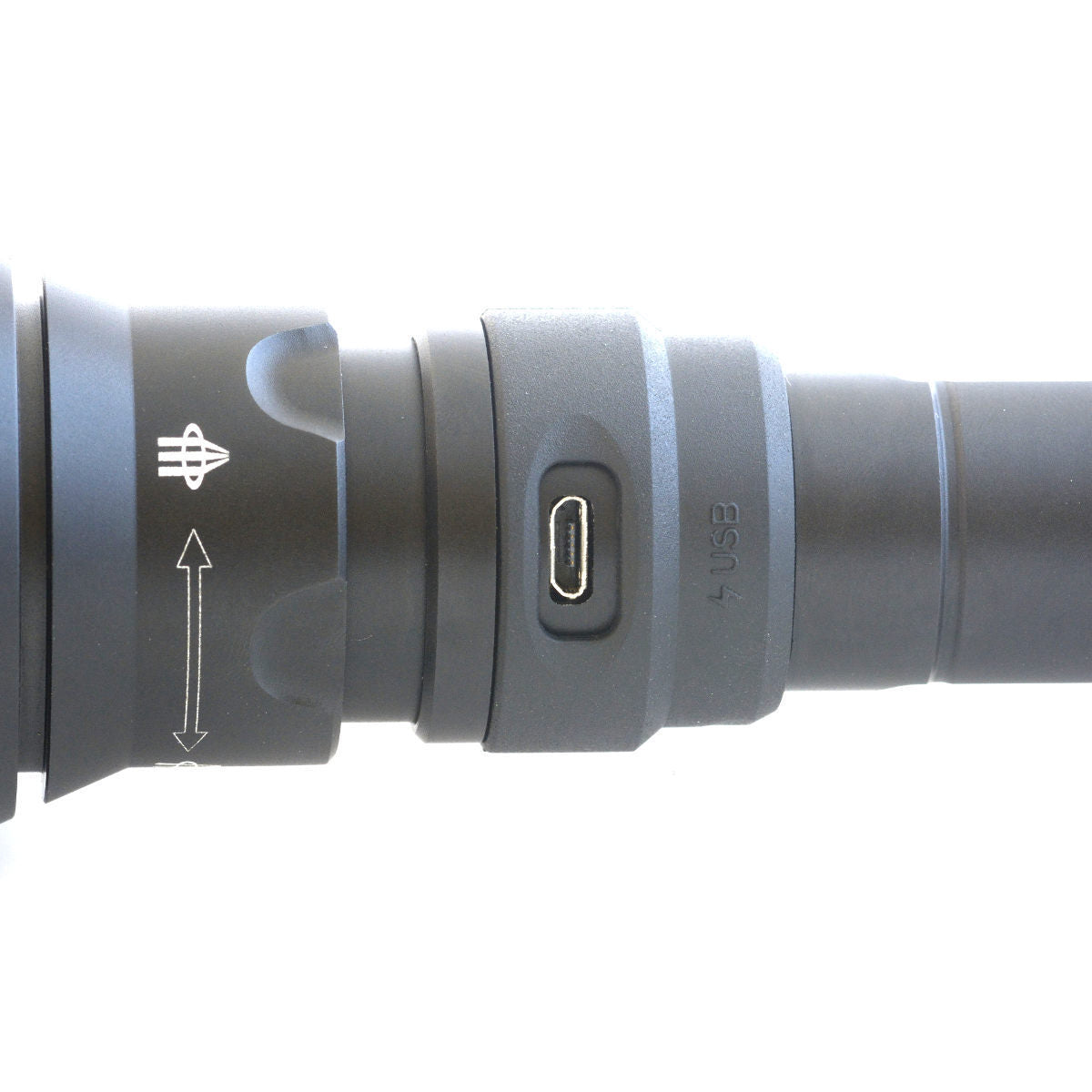

The Ranger 56 IR torch features USB internal charging, meaning you can recharge the torch from any USB point, in your car, office, powerbank, etc. The charger with your Wolf Eyes LED Torch is Australian Approved, meaning that you can feel safe using it and all your insurances will apply.
Support
Your Wolf Eyes Torch is fully supported within Australia. We have spares here with solid stocks to support our Police and Military partners, we also have a 1300 911 007 phone number to provide over the phone assistance. After hours there is live answering on this line so you can be looked after during working hours.
