Pulsar Merger XL50 LRF

The HD thermal binoculars



Buying Options

Quantity Image Name Price
Pulsar Merger XL50 LRF HD Thermal Binoculars Pulsar Merger XL50 LRF HD Thermal Binoculars
$8,999.00
In stock

Pulsar Merger XL50 LRF HD thermal binoculars - High Definition



The Pulsar Merger XL50 LRF - High Definition thermal binoculars

The new Merger XL50 LRF have been announced and are almost with us, we expect in Australia this side of the financial year. This is the high definition version of the Merger offering a 1024 x 768 sensor, 2300 metres of detection range and Pulsar usability.  Like all Mergers it has wifi to a tablet or a phone, with video and photo recording. A 1,000 metre laser range finder is included in the package



New HD 1024x768 @ 12 µm thermal sensor

Merger LRF XL50 offers the next level of thermal imaging experience. The image generated by new 1024x768 pixels thermal sensor features high definition and rich detail. It is ideal for uncompromised trophy identification. Silhouettes, anatomy & behavioural peculiarities of animal are well visible clearly distinguishable.



High image detail across the whole magnification range 2.5-20x

Variable 2.5-20x magnification provides improved focus and better overall object recognition at significant distances. The HD-sensor allows to maintain high level of image detail over the entire magnification range. The zoom changes either gradually in 2x step or continuously for a customized FOV / magnification ratio for each specific situation.



Wide field of view

Merger LRF XL50 offers wide field of view for easy scanning and spotting. Explore landscapes in HD-quality with an wide 14 degrees FOV and optimal 2.5x magnification. Large-format sensor allows to have best-in-class FOV / magnification ratio even on high zoom levels, up to 20x.



Extra-long detection range

Powerful objective lens in combination with professional grade 12 µm / 1024x768 pix HD thermal imaging sensor provides exceptional detection capabilities. A standard 1,8m tall object can be detected at a 2300 m distance in complete darkness.

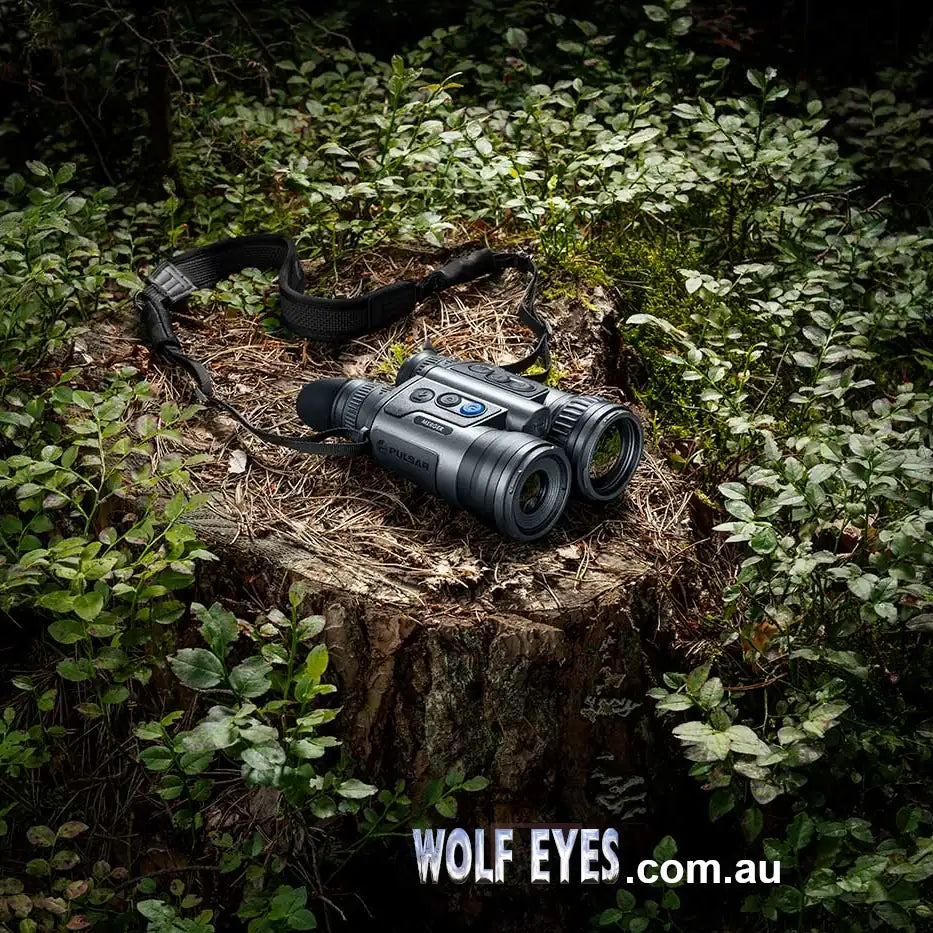

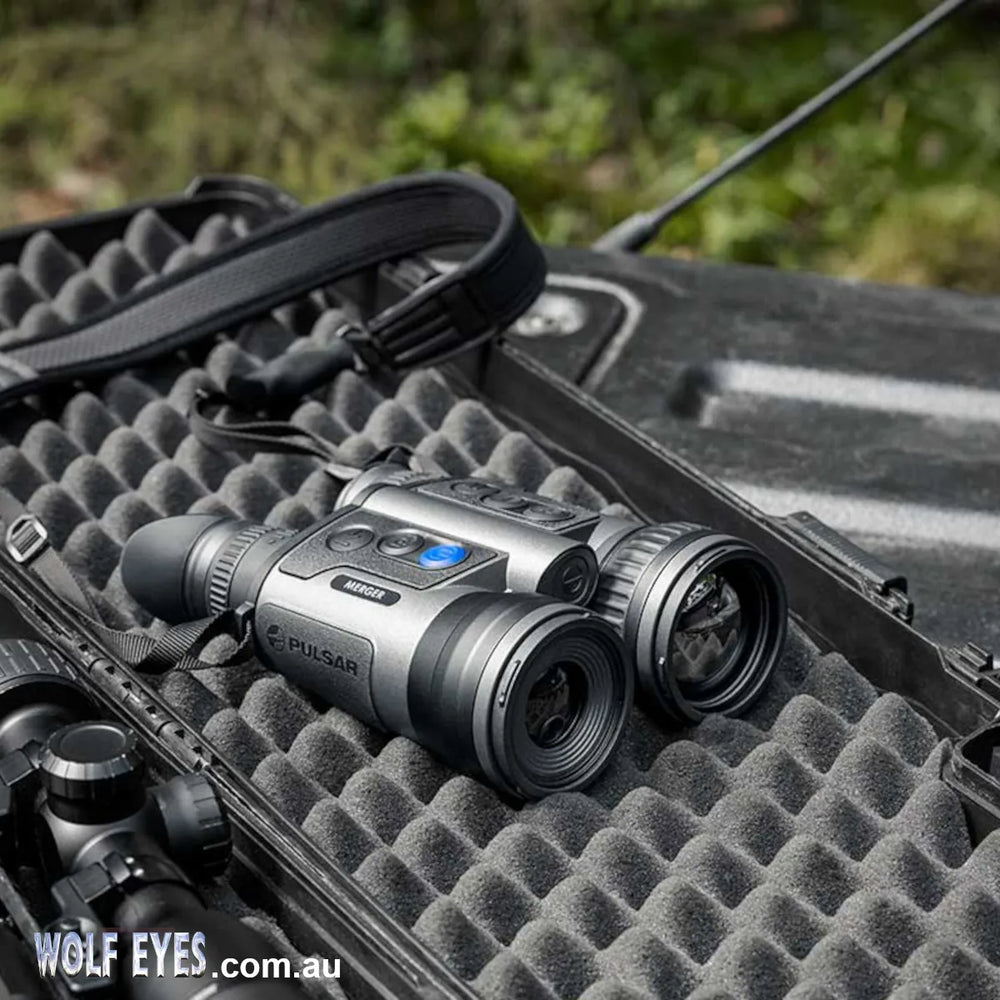

Classic binocular design

Merger LRF thermal imaging binoculars are built with the classic design of daytime binoculars. With a small form factor, these thermal imaging binoculars fit comfortably in the hand, but still offer appealing external aesthetics and exemplary ergonomics. The six function buttons are placed in the comfort access zone and the most used digital device functions are activated with a single touch.



Comfortable viewing experience with both eyes

The Merger LRF binoculars’ optical design fully takes into account the nature of human vision. It is natural for a person to receive visual information through two visual channels simultaneously. Viewing with two eyes is less tiring than viewing with one. This means better detection of small or faint objects, and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The interpupillary distance in the Merger LRF binoculars is adjustable from 62 to 74 mm in accordance with the individual characteristics of a particular user.

Precise laser rangefinder with 1000 m measuring distance

Understanding the target distance is an essential factor in making the right decisions. A built-in laser rangefinder with a range of up to 1 kilometre allows you to measure distances in single measurements and continuous scanning modes with an accuracy of ± 1 meters for quick and error-free assessment of the situation.



Combined dual battery system

The Merger LRF XL50 is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees long battery life. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.





Main Specifications
Sensor:     HD 1024x768 @ 12 µm (NETD <40 mK)
Objective lens:     F50 / 1.0
Magnification:      x 2.5 – 20 (x8 zoom)
Field of view (HxV), degrees / m@100m:     14x10.5 / 24.6x18.5
Detection range, m:     2300

Sensor
Type:     uncooled
Resolution, pixels:     1024x768
Pixel pitch, µm:     12
NETD, mK:     <40
Frame rate, Hz:     50

Optics
Objective lens:     F50 / 1.0
Magnification, x:     2.5 – 20
Field of view (HxV), degrees / m @ 100 m:     14x10.5 / 24.6x18.5
Interpupillary distance adjustment, mm:     62 – 74
Eye relief, mm:     15

Display
Type:     AMOLED HD
Resolution, pixels:     1024x768

Range Performance
Detection range, m:     2300

Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014:     1
Wavelength, nm:     905
Max. measuring range, m:     1000
Measurement accuracy, m:     ± 1

Video Recorder
Video / photo resolution, pixel:     1024x768
Video / photo format:     .mp4 / .jpg
Built-in memory, GB:     64

Wifi
Wireless Protocol:     Wi-Fi
Wireless Standard:      EEE 802.11 b/g/n/ac (WPA)
Frequency, GHz:     2.4 / 5

Environmental Characteristics
Degree of protection, IP code (IEC60529):     IPХ7 (waterproof)
Operating temperature range, °С:     -25 – +50

Connections and Compatibilities
Mount, type:     1/4" socket
Supported Application:     Stream Vision 2

Power Supply
Output voltage, V:     3.7
Battery type:     Dual Li-Ion Power System: 3.2 A·h Changeable Battery (external) / 4.0 A·h Battery (internal)
Capacity, mAh:     3200 (external) + 4000 (internal)
Operating time on battery pack (at t=22°C), h *:    8
External power supply, V:     5V, 9V (USB Type-C Power Delivery)

Weight & Size
Body material:     Magnesium alloy
Dimensions, mm:     197x140x72
Weight, kg:     0.95 (batteries included)




(112-Pulsar-Merger-XL50LRF)

SKU 112-Pulsar-Merger-XL50LRF
Brand Pulsar Thermal Night Vision
Shipping Weight 0.0001kg
Shipping Width 0.001m
Shipping Height 0.001m
Shipping Length 0.001m
